Mod. STREAM600 (CLASS C)

Mod. STREAM600 (CLASS C)

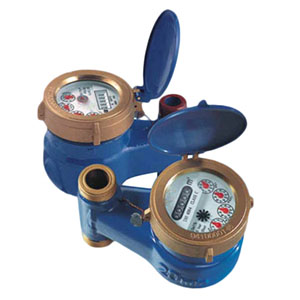

STREAM600 is a multi jet semi dry type (liquid sealed type) water meter with mechanism transmission and direct reading, steady performance and high accuracy, guaranteeing working temperature up to 50°C for cold water in size from 15mm to 50mm, with flow rates between 15.625l/h and 31.25m³/h.

Product Description: Download

Performance Characteristics
Performance confirms to
  • Multi jet, semi dry type(liquid sealed).
  • Mechanism transmission.
  • Low starting flow rate.
  • Very low pressure loss.
  • The register is protected by special liquid.
  • High accuracy and steady performance.
  • Maximum temperature of 50oC.
  • Maximum working pressure of 1.60Mpa.
  • ISO4064 1993 vision in Class B, Class C
  • ISO4064 2005 vision in R80, R100, R125, R160









Technical Data
Nominal diameter
inch 1/2" 3/4" 1" 11/4" 11/2"
2"
Nominal diameter
mm 15 20 25 32 40 50
Measuring principle

Multi-jet Water Meters
Length of meter mm 110/165/170/190 190/195 225/260 230/260 245/300 280/300
Housing materials
Brass
Register
Liquid seal register(full register sealed)
Operating pressure
PN16
Operating temperature
Cold water up to 50oC
Qmax m3/h 3 5 7 12 20 30
Qn m3/h
1.5 2.3 3.5 6 10 15
Qt l/h 120/22.5 200/37.5 280/52.5 480/90 800/150 450/225
Qmin l/h
30/15 50/25 70/35 120/60 200/100 300/150
Q4 m3/h
3.125 5 7.875 7.875 20 31.25
Q3 m3/h
2.5 4 6.3 6.3 16 25
Q2 l/h
50/40/32/25 80/64/51.2/40 126/100.8/80.64/63 126/100.8/63 320/256/160 500/312.5/250
Q1 l/h
31.25/25/20/15.62 50/40/32/25 78.75/63/50.4/39.37 78.75/63/39.37 200/160/100 400/250/156.25
Maximum reading
m3 106
106
106
106
106
106
Minimum reading
l 0.05 0.05 0.05 0.05 0.05 0.50
Metrological class horizontal (MAX)

R=160
Metrological class vertical (MAX)

Class B
Additional optionals

Inner non-return valve

Different meter length

Composite materials housing
AMR technology

Reed switch pulser
