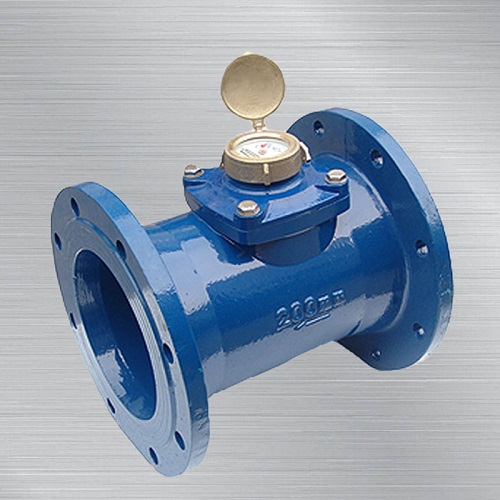

Mod. WDE |
| WDE is a woltman dry type water meter with removable insert, designed for industrial and irrigation applications, resistant to external magnetic interference with direct reading and guaranteeing working temperature up to 50°C for cold water or 90°C for hot water in size from 40mm to 300mm, with flow rates between 0.45m³/h and 1200m³/h. |
 |
|
 |

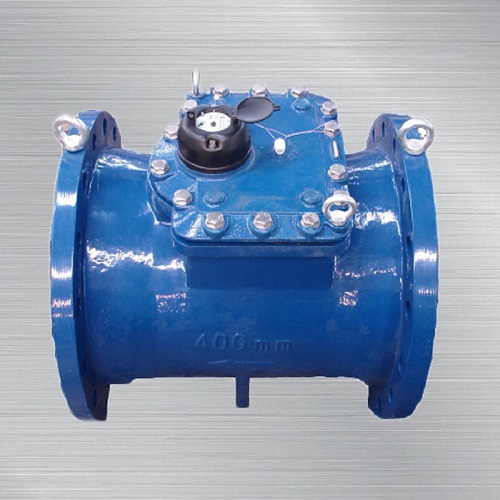

Mod. WDE 350-600 |
| WDE is a woltman dry type water meter with removable insert, designed for industrial and irrigation applications, resistant to external magnetic interference with direct reading and guaranteeing working temperature up to 50°C for cold water or 90°C for hot water in size from 1.1/2\" to 20\"(40mm-500mm), with flow rates between 0.45m³/h and 3000m³/h. |
|
|
 |
Mod. WSE |
| WSE is a vertical woltman dry water meter with removable insert, designed for industrial and irrigation applications, with direct reading guaranteeing working temperature up to 50°C for cold water or 90°C for hot water in size from 1.1/2\" to 8\" (40mm-200mm), with flow rates between 0.45m³/h and 500m³/h. |
|
|
 |
Mod. WAE |
| WAE is a woltman dry type water meter with removable instert and direct reading, brass lid, resistant against external magnetic interference, very low pressure loss, guaranteeing working temperature up to 50°C for cold water or 90°C for hot water in size from 2\" to 12\" (50mm-300mm), with flow rates between 0.45m³/h and 1200m³/h. |
|
|
 |
Mod. WIE |
| WIE is a water meter with removable insert, dry type, resistant against external magnetic interference, designd to measure irrigation water or waste water, with very low pressure loss, guaranteeing working temperature up to 50°C for cold water or 90°C for hot water in size from 50mm to 300mm, with flow rates between 1.2m³/h and 1200m³/h. |
|
|
 |
Mod. WAEC |
| WAEC is a combination water meter, combined by a mian removable element woltman water meter and a by-pass residentail water meter, very low pressure loss, lower starting flow, novel structure, simple maintenance, wide measuring range, keeping clear reading in long term service. |
|
|
 |
Mod. WDCZ |
| WDECZ is combination water meter, Low head loss, Lower starting flow, Novel structure, simple maintenance. Wide measuring range, dry type, keeping clear reading in long term service. The main register may rotate more than 360 degrees for easily reading in any position. |
|
|
